Pencils Jig Template For Engraving

3,00 €

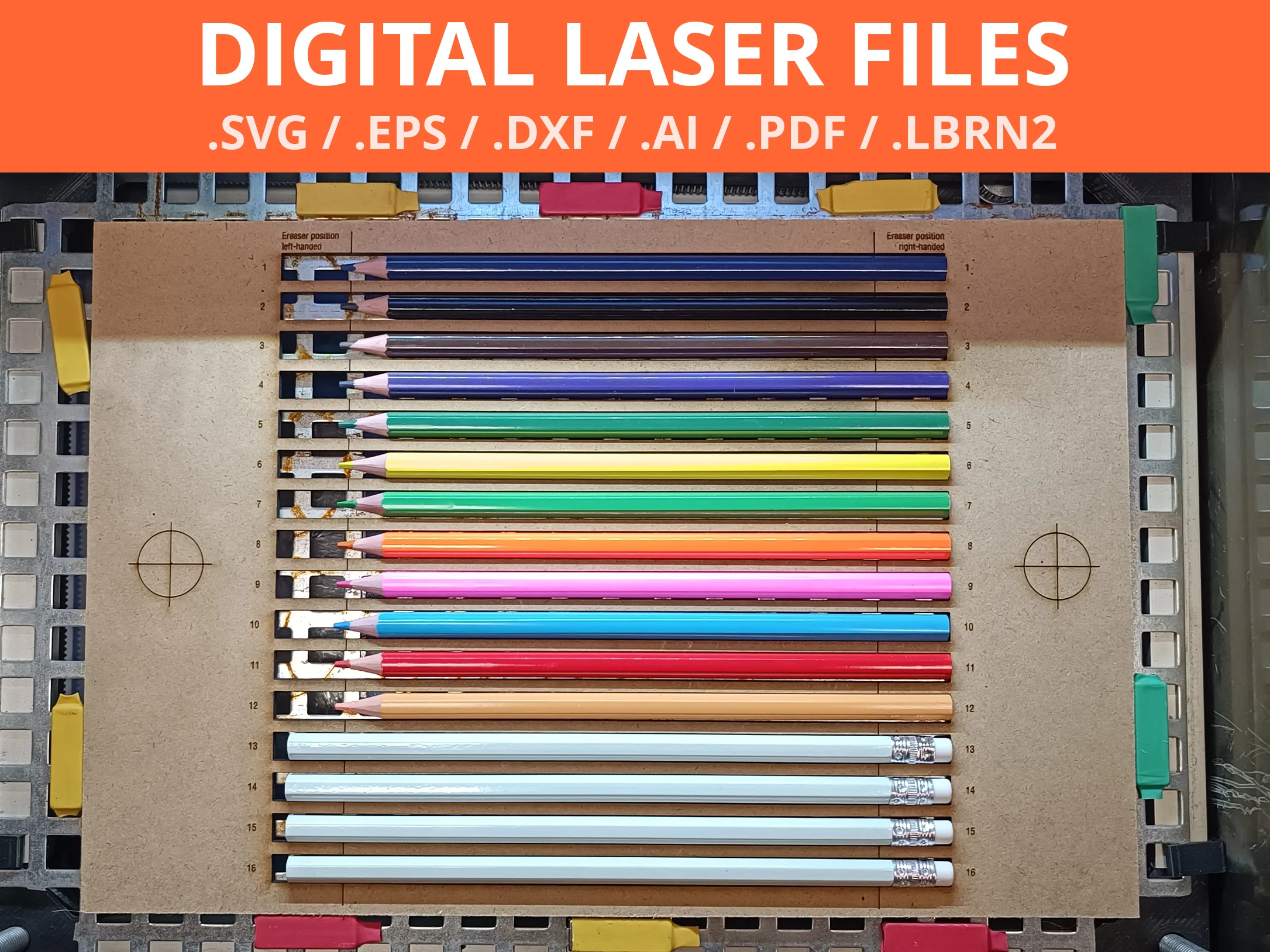

This is a template for a pencils jig for engraving (I use hexagonal pencils).

Jig dimensions are 200x300mm (~7.87×11.8 in).
The jig is made from either one or two sheets (I use two MDF sheets).

Upper one needs to be engraved and cut (to get a slot). Optional: second sheet – you can glue upper onto empty one for rigidity.

You will get ZIP file that includes SVG, EPS, DXF, PDF, AI, LBRN2 files for making a jig.

For best results use lightburn file.

Just download the file and import the preferred file type into your laser engraving software.
Recommend using 3mm for the jig for rigidity.

Do not resize the file as the measurements will change and it will no longer be accurate.

************

PLEASE NOTE:
– You MAY use files to make an end-product (jig, engraved pencils) and sell as many products as you like.
– You may NOT sell or distribute the digital files in any way (even to a friend!)!
